SSD BMT

ENV

- i9-13900K (P 50 / E 40 / U 40)

- DDR5 6000CL36 64GB

- Windows 11 XPE (https://blog.naver.com/unokim21/222607564528)



SW

- CrystalDiskMark 8.0.4c

- NARAEON Dirtytest 6.0.4

- Phison nvme flash id2 by vlo.name ( http://vlo.name:3000/ssdtool/ )



CPU PCIe 레인에 직접 연결하여 테스트함

디스크에 OS 설치시 IO성능에 영향을 줄 수 있으므로 Windows PE로 부팅하여 변인통제하였음



SAMSUNG 970 PRO 512GB

- MZ-V7P512

- FW : 1B2QEXP7

- PCIe 3.0 x4 (NVMe 1.3)

- DC +3.3V 2.9A (9.57W)



SAMSUNG 970 PRO 1TB

- MZ-V7P1T0

- FW : 1B2QEXP7

- PCIe 3.0 x4 (NVMe 1.3)

- DC +3.3V 2.9A (9.57W)

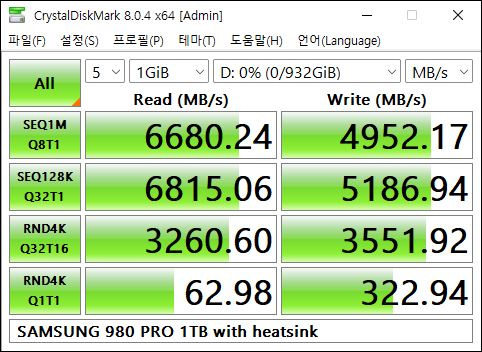

SAMSUNG 980 PRO 1TB

- MZ-V8P1T0

- FW : 5B2QGXA7

- PCIe 4.0 x4 (NVMe 1.3)

- DC +3.3V 2.9A (9.57W)



SAMSUNG PM1735 HHHL 1.6TB (Dell OEM)

- MZ-PLJ1T6

- FW : 2.0.2

- PCIe 4.0 x8 (NVMe 1.3)

- DC +12V 2.3A (27.6W)



Seagate FireCuda 530 1TB EK Heatsink

- ZP1000GM30023

- FW : SU6SM003

- PCIe 4.0 x4 (NVMe 1.4)

- DC +3.3V 2.4A (7.92W)

Phison_nvme_flash_id2

Model   : Seagate FireCuda 530 ZP1000GM30023
Fw      : SU6SM003
Size    : 953869 MB [1000.2 GB]

LBA Size: 512
CEL not supported
Read_System_Info_5008 error: -1
Firmware lock supported [02 01] [P002] [0100]
Handshake error: 0
Drive unlocked [02 03]
F/W     : SU6SM003 00
P/N     : 511-*********
Bank00: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank01: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank02: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank03: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank04: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank05: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank06: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank07: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank08: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank09: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank10: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank11: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank12: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank13: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank14: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank15: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Controller    : PS5018-E18
CPU Clk       : 1000
Flash CE      : 16
Flash Channel : 8
Interleave    : 2
Flash CE Mask : [++++++++ ++++++++ -------- --------]
FlashR Clk,MT : 1200
FlashW Clk,MT : 1200
Die per CE    : 1
Block per CE  : 2208
Page per Block: 2112
Bit Per Cell  : 3(TLC)
DRAM Size,MB  : 1024
DRAM Clock,MHz: 1600
DRAM Type     : DDR4
PMIC Type     : PS6102/PS6106
PE Cycle Limit: 3000
SLC cache     : 0xFFFFFFFF/0xFFFFFFFF

ONFI      : MICRON       MT29F512G08EBLEE3W   [34A2]
Page size : 18352 (16384+1968)
Page/Block: 2112
Block/LUN : 2224
LUN/Chip  : 1
Bit/Cell  : 3 (TLC)
Endurance : 3000
PlanAdrBit: 2 (4 plane)



Seagate FireCuda 530 2TB

- ZP2000GM30013

- FW : SU6SM005

- PCIe 4.0 x4 (NVMe 1.4)

- DC +3.3V 2.9A

Phison_nvme_flash_id2

Model   : Seagate FireCuda 530 ZP2000GM30013
Fw      : SU6SM005
Size    : 1907729 MB [2000.4 GB]
LBA Size: 512
CEL not supported
Read_System_Info_5008 error: -1
Firmware lock supported [02 01] [P002] [0100]
Handshake error: 0
Drive unlocked [02 03]
F/W     : SU6SM005 00
P/N     : 511-*********
Bank00: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank01: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank02: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank03: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank04: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank05: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank06: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank07: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank08: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank09: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank10: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank11: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank12: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank13: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank14: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank15: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank16: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank17: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank18: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank19: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank20: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank21: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank22: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank23: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank24: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank25: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank26: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank27: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank28: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank29: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank30: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank31: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Controller    : PS5018-E18
CPU Clk       : 1000
Flash CE      : 32
Flash Channel : 8
Interleave    : 4
Flash CE Mask : [++++++++ ++++++++ ++++++++ ++++++++]
FlashR Clk,MT : 1200
FlashW Clk,MT : 1200
Die per CE    : 1
Block per CE  : 2208
Page per Block: 2112
Bit Per Cell  : 3(TLC)
DRAM Size,MB  : 2048
DRAM Clock,MHz: 1600
DRAM Type     : DDR4
PMIC Type     : PS6102/PS6106
PE Cycle Limit: 3000
SLC cache     : 0xFFFFFFFF/0xFFFFFFFF

ONFI      : MICRON       MT29F512G08EBLEE3W   [34A2]
Page size : 18352 (16384+1968)
Page/Block: 2112
Block/LUN : 2224
LUN/Chip  : 1
Bit/Cell  : 3 (TLC)
Endurance : 3000
PlanAdrBit: 2 (4 plane)

TeamGroup T-Force CARDEA A440 Pro 2TB Heatsink

- TM8FPR002T0C128

- FW : EIFM31.6

- PCIe 4.0 x4 (NVMe 1.4)

- DC +3.3V 2.5A (8.25W)

Phison_nvme_flash_id2

Model   : T-FORCE TM8FPZ002T
Fw      : EIFM31.6
Size    : 1907729 MB [2000.4 GB]
LBA Size: 512
CEL not supported
Read_System_Info_5008 error: -1
Firmware lock supported [02 03] [P001] [0100]
Handshake error: 0
Drive unlocked [02 03]
F/W     : EIFM31.6 00
P/N     : 511-*********
Bank00: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank01: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank02: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank03: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank04: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank05: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank06: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank07: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank08: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank09: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank10: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank11: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank12: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank13: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank14: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank15: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank16: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank17: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank18: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank19: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank20: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank21: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank22: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank23: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank24: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank25: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank26: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank27: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank28: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank29: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank30: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Bank31: 0x2c,0xc3,0x8,0x32,0xea,0x30,0x0,0x0 - Micron 176L(B47R) TLC 512Gb/CE 512Gb/die
Controller    : PS5018-E18
CPU Clk       : 1000
Flash CE      : 32
Flash Channel : 8
Interleave    : 4
Flash CE Mask : [++++++++ ++++++++ ++++++++ ++++++++]
FlashR Clk,MT : 1200
FlashW Clk,MT : 1200
Die per CE    : 1
Block per CE  : 2208
Page per Block: 2112
Bit Per Cell  : 3(TLC)
DRAM Size,MB  : 2048
DRAM Clock,MHz: 2666
DRAM Type     : DDR4
PMIC Type     : PS6102/PS6106
PE Cycle Limit: 2000
SLC cache     : 0xFFFFFFFF/0xFFFFFFFF

ONFI      : MICRON       MT29F512G08EBLEE3W   [34A2]
Page size : 18352 (16384+1968)
Page/Block: 2112
Block/LUN : 2224
LUN/Chip  : 1
Bit/Cell  : 3 (TLC)
Endurance : 3000
PlanAdrBit: 2 (4 plane)
